Given the fact that most helicopters nowadays use turbo shaft engines and many aeroplanes still use turboprop engines (which are essentially turbo shaft engines with a propeller), how do you differentiate between a helicopter engine and an aircraft engine? What are the differences between the two?

p.s. I am not looking for differences in turboprop and turboshaft, but differences in helicopter and plane engines

$\endgroup$
22
$\begingroup$

There are no major differences between a turboprop used on an airplane and a turboshaft used on an helicopter. All power is collected by the turbine shaft which rotates the blades through a gearbox.

An example of a gas turbine used in helicopter, airplane, train, and even snowplow is the well-known Pratt & Whitney PT6. It has different versions. The two versions shown below are the PT6A for a propeller (top), and the PT6B for an helicopter (bottom, with a large gearbox). Each sub-family has variant for different powers.

enter image description here
(source)

enter image description here
(source)

On the two images, from right to left: The accessory box powered by the compressor section, the air intake recognizable by its filter, the compressor (not visible), the combustion chamber (yellow color on the bottom image) with its circle of igniters, the turbine (not visible), the exhaust (the big hole, best visible on the bottom image), the power gearbox with different output shafts.


There are different types for aero-engines, including turbojet, turbofan, turboprop and turboshaft (I exclude the ramjet which is not used in civilian aviation).

All types are based on a gas turbine, but the way the turbine participates to the motion is different.

enter image description here
(source)

While airplanes use all types, helicopters cannot use the jet action/reaction principle (tip jet excluded for simplification).

The gas turbine can be the same for turboshaft and turboprop engines, but will be fitted with appropriate elements:

  • The rotational speed of the shaft will be adjusted to accommodate the rotor or the propeller. This is done using a gear reduction system. An helicopter rotor turns slower than an airplane propeller.

  • Air intake and exhaust are adapted. It rather common to have the air intake on the opposite side of the power output shaft. For a pulling propeller, this means the intake will be aft, and air must be collected forward and ducted to the engine intake.

  • The power output shaft is usually used to bear the propeller tension caused by the lift, while on an helicopter, the rotor tension is borne by the frame.

  • The accessory box is usually powered by the compressor side of the engine.

  • A turboshaft don't provide the bleed air extraction, there is no cabin pressurization required.

enter image description here
(source)

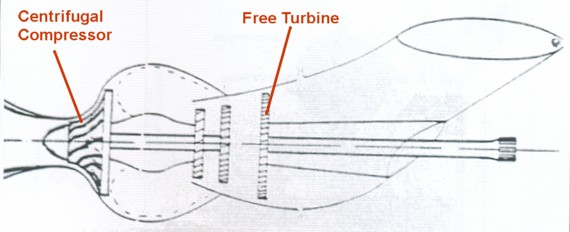

Gas turbines used in both cases are frequently free turbines, where the compressor section and the turbine (power) section rotate independently of each other. This allows to produce electricity or hydraulic power on the ground without turning the blades.
